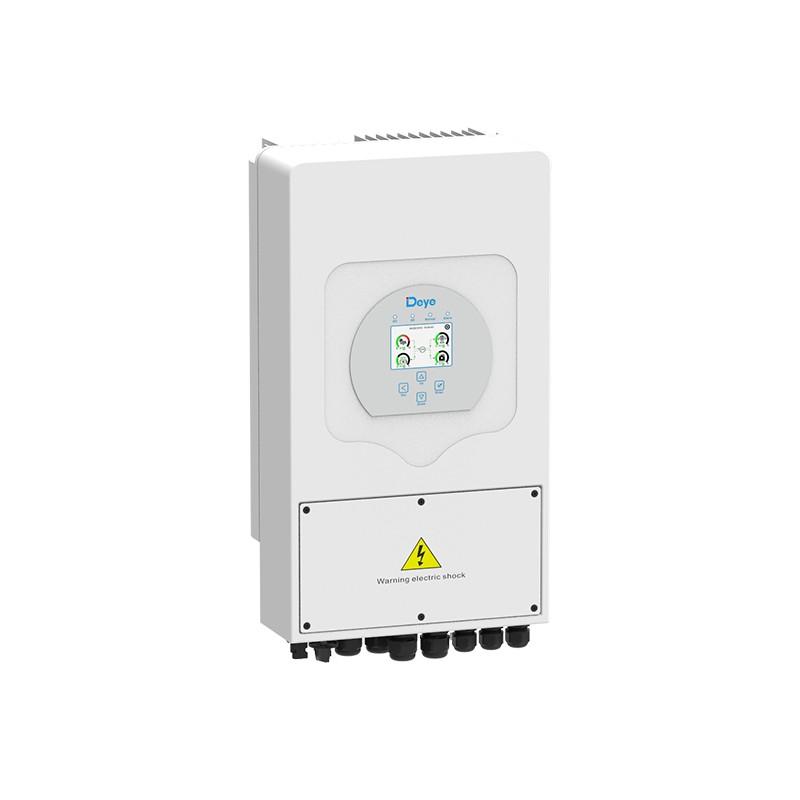

Deye 12KW 3 Phase Hybrid Inverter

Deye 12KW 3 Phase Hybrid Inverter
Includes:  Wi-Fi Dongle + BMS Communication Cable
Higer yields.
Improve self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT design, Max. efficiency of 97.6%.
User-friendly.
LCD Touch screen and buttons, easy operation.
Compatible with lithium-ion battery and lead acid battery.
Web browser and mobile App monitoring supported.
Reliable.
PV lighting protection, Anti-islanding protection, Leakage current protection etc.
Support store energy from DG when needed, ensure the system working within 7*24H.
IP65 protection degree, adapt to indoor and outdoor using.
Automatically switch from on-grid to off-grid mode within 5ms.
Zero exporting function, fast reaction within 200ms in zero export mode.
Smart.
Programmable charging and discharging schedule.
Both wind turbines and solar panels can be connected as DC input power.
Max. 16 units can be paralleled for higher system power.
Retrofitting of existing solar system to energy storage system.
Features:
100% unbalanced output, each phase Max. output up to 50% rated power.
48V low voltage battery, transformer isolation design.
6 time periods for battery charging/discharging.
Max. charging/discharging current of 240A.
Frequency droop control.
DC couple and AC couple to retrofit existing solar system.
Support storing energy from diesel generator

Battery Input Data
Battery Type: Lead-acid or Li-lon
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 240A
Max. Discharging Current (A): 240A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy for Lithium Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W): 15600W.
PV input Voltage (V): 550V (150V-800V).
MPPT Range (V): 200-650V.
Start-up Voltage (V): 160V.
PV Input Current (A): 25A + 125.5A.
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 2+1.
AC Output Data
Rated AC Output and UPS Power (W): 12000W
Max AC Output Power (W): 13200W
Peak Power(off-grid): 2 times of rated power, 10 S.
AC Output Rated Current(A): 18A
Max.AC Current(A): 27A
Max Continuous AC Pass-through(A): 50A.
Output Frequency and Voltage: 50/60Hz; 230/400Vac (Three Phase)
Grid Type: Three Phase
Current Harmonic Distortion: THD<3% (Linear load45 C Derating
Cooling: Fan
Noise (dB): <30
Communication with BMS: RS485; CAN
Weight (kg): 37
Size (mm): 422W X 685H X 281mm
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 years
