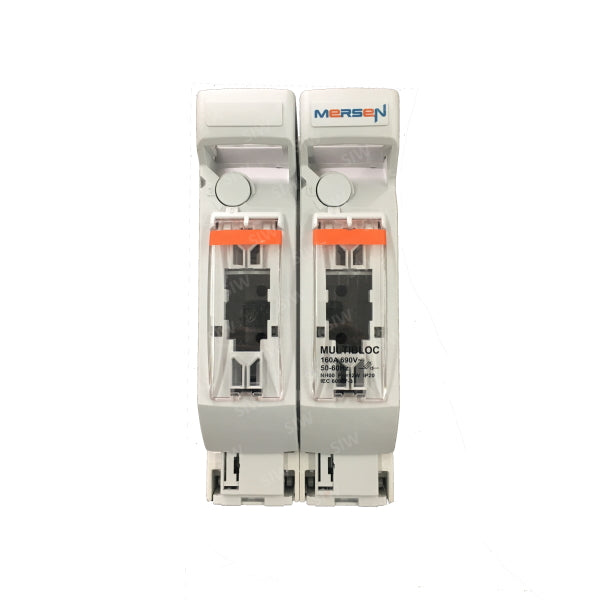

Battery Disconnect Mersen 2P-160A (NO FUSES)

Battery Disconnect Mersen 2P-160Amp
Fuse switch-disconnectors are intended for fuse-links with blade contacts size 00.
Enable safe disconnection not only of rated current, but also overcurrent up to octuple rated current.
Variability of connecting sets.
Measuring holes in the cover.
It is possible to lock the switch-disconnector cover.
It is equipped with a label for description of the protected circuit
Mounting directly on the panel by means of screws.
Adapter for busbar system with spacing 60 mm, busbar thickness 5 ÷ 12 mm, busbar width 12 ÷ 32 mm for 3-pole.
Terminals can be completed with terminal extensions for connection of conductors of cross-section up to  95 mm2 .
More switch-disconnectors side-by-side or flat can be installed without limitation of electrical parameters.
Connection Bottom connection is possible without limitation of electric parameters.

Rated operating voltage
AC/DC 690 V
Rated operating current
160 A
Utilization category (switching mode) / AC 400 V
AC-23B
Utilization category (switching mode) / AC 500 V
AC-22B
Utilization category (switching mode) / AC 690 V
AC-22B
Utilization category (switching mode) / DC 250 V
DC-21B
Thermal current with fuse-link
160 A
Thermal current with disconnecting link ZP000
250 A
Rated frequency
40 ÷ 60 Hz
Rated conditional short-circuit current (RMS) AC 400 V
120 kA
Rated conditional short-circuit current (RMS) AC 500 V
50 kA
Rated conditional short-circuit current (RMS) AC 690 V
50 kA
Rated impulse withstand voltage
12 kV / FH00-.A/., 8 kV / FH00-.S/., 12 kV / FH00-3L/.
Rated short-time withstand current
5 kA
Rated short-circuit making capacity / AC 400 V
16 kA
Rated insulation voltage
AC 1000 V
Max. power losses of the fuse-link
12 W
Power losses without fuse-link / In
7 W
Degree of protection from front side, built-in device, cover opened
IP20
Degree of protection from front side, built-in device, cover closed
IP20
